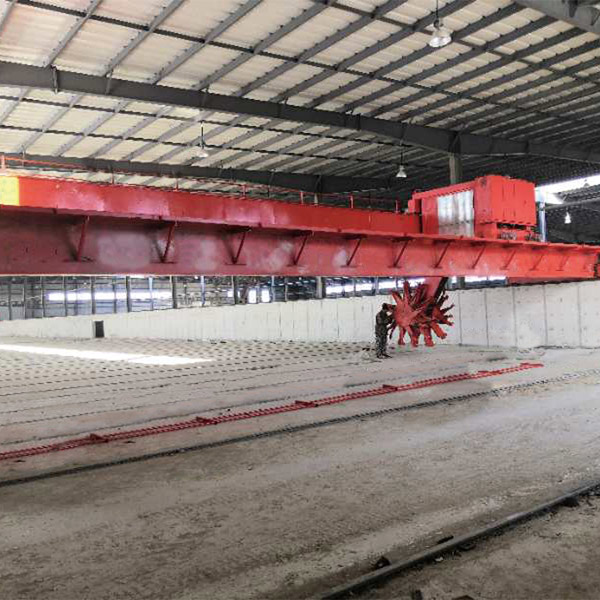

Wheel disc tipping machine

The wheel-type turning machine is suitable for the fermentation and turning of organic waste such as pigs, cattle, sheep, chickens and other livestock and poultry manure, sludge garbage, sugar factory filter mud, dross cake and straw sawdust, and is widely used in organic fertilizer factories , compound fertilizer plant, sludge waste plant, horticultural field, and Agaricus bisporus planting plant, etc. Compared with the traditional trough-type turning machine, it saves a lot of space, with dead angle turning, wide turning range, deep turning depth, even turning and high turning efficiency.

2022/12/19Organic fertilizer equipment Product 366

Colorred
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The wheel-type turning and throwing machine is an organic fertilizer equipment in the whole organic fertilizer production line. The turning and throwing equipment used for fermented materials in the organic fertilizer production line adopts an intermediate chain transmission mechanism to drive two large-diameter turning and throwing wheels, symmetrical turning and throwing , no dead angle, adjustable speed shift trolley, left and right displacement, low energy consumption to complete large-span turning and throwing work. In the case of deep piled materials, through the unique energy-saving transmission mechanism, use less power to complete high-depth, long-span turning operations. Its hydraulic lifting system can turn over the large plate and lift it automatically to ensure that the equipment can move without obstacles. In addition, the supporting fully automatic electrical control system further ensures that the equipment is easy to operate, safe and reliable. The wheel turner can be customized with different spans according to the width of the fermentation tank.
The wheel-type turning machine is suitable for the fermentation and turning of organic waste such as pigs, cattle, sheep, chickens and other livestock and poultry manure, sludge garbage, sugar factory filter mud, dross cake and straw sawdust, and is widely used in organic fertilizer factories , compound fertilizer plant, sludge waste plant, horticultural field, and Agaricus bisporus planting plant, etc.
Compared with the traditional trough-type turning machine, it saves a lot of space, with dead angle turning, wide turning range, deep turning depth, even turning and high turning efficiency.

Product features and advantages

【product advantages】

High turning depth: the turning depth can reach 1.5-3 meters;

Large turning span: the maximum turning width can reach 30 meters wide;

Low energy consumption for turning and throwing: adopting a unique energy-saving and high-efficiency transmission structure, which reduces energy consumption by 70% compared with traditional organic fertilizer turning and throwing equipment under the same workload

Turning and throwing without dead angle: the wheel is turned symmetrically, and there is no dead angle for turning under the displacement of the speed-adjustable shifting trolley;

High degree of automation: Equipped with a fully automatic electrical control system, no human operation is required during the working period of the equipment.

【Product advantages】

1. Automatic control

The centralized control of the control cabinet can realize manual or automatic control functions.

2. Compact structure, advanced technology

The use of some beneficial microorganisms can promote the rapid decomposition of organic waste such as livestock and poultry manure. The unique trough-type continuous aerobic fermentation technology is used to quickly decompose, dehydrate, sterilize and deodorize organic waste, achieving the purpose of harmless, resourceful and reduction treatment, with low energy consumption and stable product quality.

Suitable for aerobic fermentation It is suitable for aerobic fermentation and can be used in conjunction with solar fermentation rooms, fermentation tanks and transfer machines. It can be used in conjunction with the transfer machine to realize the function of one machine with multiple slots.

3. Strong and durable

The teeth are strong and durable, and have a certain ability to crush and mix materials.

Rotary turner maintenance operating procedures

1. The turning and throwing machine is in direct contact with the material when it is working, and it is highly corrosive. Therefore, the dirt sticking to the turning machine, especially the dirt on the chassis should be cleaned up in time, and if there is any peeling off of the protective paint, it must be repainted.

2. Always check the tightness of the transmission chain and adjust it in time. When the tension adjustment still fails to meet the requirements, several links of the chain can be removed to make it meet the requirements; if it is found that the transmission chain links are not rotating properly, it should be lubricated with butter or engine oil in time; the walking support bearings on the chassis, stirring The shaft rotating support (integrated with the upper part) and the lifting support bearing should be lubricated with grease regularly.

3. Before using the gearbox, check whether there is oil in it. Replace with new oil after the first 100 hours of operation, and then replace it with new oil every 1,000 hours of operation. The longest interval is one year.

4. After the hydraulic system has been running for 200 hours, all the hydraulic oil should be controlled and controlled, the impurities in the filter of the hydraulic system should be removed, and the filter element needs to be replaced; according to the cleanliness of the discharged hydraulic oil, it is determined whether to reuse it after filtering. When discharging hydraulic oil, the cylinder rod should be retracted into the cylinder barrel first; every 800 hours of work, the hydraulic system should be cleaned.

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
