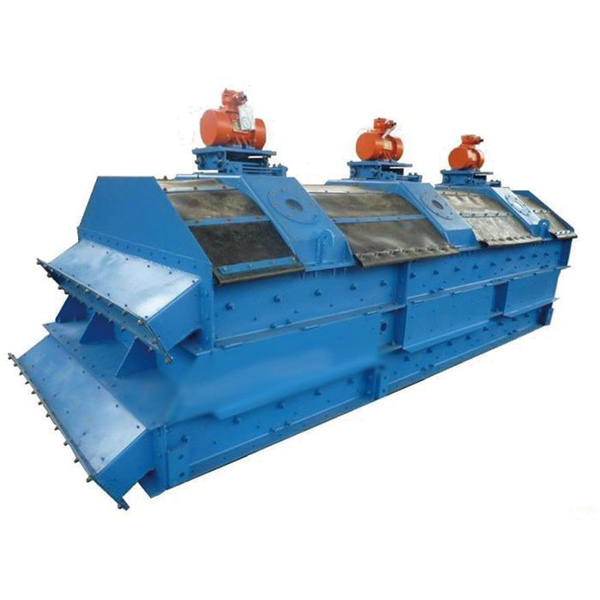

Vibrating Sieving Machine

The vibrating mesh screener is suitable for grading loose compound fertilizers and other loose fine materials.

2022/12/19Organic fertilizer equipment Product 367

ColorBlue
featuresHigh screening efficiency
materialHigh manganese steel screen
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The vibrating screen screen (ZWS type) uses the vibrating motor as the vibration source to pull the screen and the screen frame to vibrate to realize material classification. Vibrating mesh screen (ZWS type) has adjustable amplitude, high screening efficiency, large production capacity, small dynamic load, low noise, sealed and dustproof, and easy maintenance. ZWS type vibrating mesh screening machine is designed and manufactured by absorbing advanced technology from the United States. It uses a vibrating motor as a vibration source to pull the screen and the screen frame to vibrate to achieve material classification.

product structure

ZWS vibrating mesh screening machine is composed of feeder, sieve box screen surface body hopper and vibrating mesh device. The material is evenly fed to the sieve surface by the feeder, and is divided into the product on the sieve and the product under the sieve (single-layer sieve). This series of vibrating mesh screens uses a vibrating motor as the vibration source to pull the screen to vibrate up and down. The vibration amplitude of the screen machine is adjustable to adapt to the classification of different materials. The vibration of the screen, on the one hand, can prevent the screen from clogging, and at the same time make the material be thrown forward and bounce to achieve classification, so the screening efficiency of the vibrating screen is high. The electromagnetic vibration high-frequency vibrating screen adopts a new principle, the screen surface vibrates, and the screen box basically does not participate in vibration. The excitation force drives the vibration system to excite the screen surface. The vibration system is designed to work in a near-resonance state, and the required driving force can be reached operating parameters while saving energy. In addition, the screen surface vibrates at high frequency, with an amplitude of 1-4mm, which can reach 8-10 times the acceleration of gravity, which is 2-4 times the vibration intensity of general screening equipment, so it does not block the screen holes, the screen surface has strong self-cleaning ability, and the screening With high efficiency and large processing capacity, it is very suitable for the screening of fine particle materials. The processing capacity of 4 square meters is about 200 tons. The screening efficiency is within 60%. If the concentration is adjusted properly, it can reach 80%. The ideal equipment for improving screening and increasing production in iron beneficiation plants—-electromagnetic vibration high frequency vibrating screen.

Main technical parameters

Model	Layer	Area (m2)	Inclination (°)	Mesh Size(mm)	Materialfeed size(mm)	Production capacity (t/h)	Vibration frequency (l/min)	Power（KW）
ZWS1230	1	3.6	37	10×40	M60	30-35	1450	0.85×2
2ZWS1230	2	3.6	33	above：4×50 under：1.4×50	M60	30-35	1450	0.85×2

Vibrating mesh screening machine Main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
