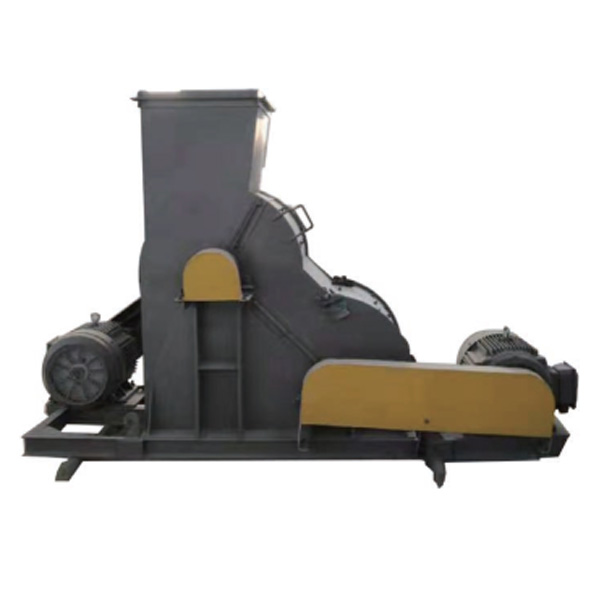

Two-stage crusher

The two-stage pulverizer is a non-two-stage non-sieve bottom pulverizer

2022/12/21Organic fertilizer equipment Product 534

Colorgrey
featuresFine particle size
materialHigh alloy wear resistance
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The double-stage pulverizer is due to the production of gangue bricks in the brick and tile factory. The coal gangue raw materials required can not be crushed with a single-stage pulverizer when encountering wet materials. Later, in long-term practice, the newly transformed coal gangue pulverizer equipment , Composed of two-stage rotors, without a sieve bottom, the crushing particle size is fine, the output is also high, the speed is 1470 revolutions per minute, and the crushing of dry and wet materials is no longer a problem. After long-term investigation, careful design, and bold practice, we have successfully developed and produced a utility model patent product that can easily crush high-humidity coal gangue, shale, cinder and other materials. This product has broken through a major difficulty in the crushing of high-humidity materials, and the market has responded well in recent years.

Product performance characteristics

The two-stage pulverizer is also called the wet material crusher, and has the following performance characteristics

1. No sieve grate bottom, high-humidity materials, never clogged

The traditional pulverizer with a grate sieve plate is not suitable for raw materials with a moisture content higher than 8%. When the moisture content of the raw materials is higher than 10%, it is easy to be seriously blocked, so that the hammer head cannot rotate, the material cannot be discharged, and even burned. A broken motor seriously affects production.

The design of this machine has no sieve grate bottom, no strict requirements on the moisture content of the material, there is no problem of sticking the sieve plate at all, and there is no problem that the fine powder cannot be discharged in time and repeated crushing, so the crushing efficiency is high and there is no hammer. Ineffective wear phenomenon.

2. Double-rotor upper and lower two-stage crushing

The two sets of rotors connected in series make the materials crushed by the upper rotor immediately crushed again by the hammer head of the rapidly rotating lower rotor, and the materials in the inner cavity collide with each other rapidly and crush each other to achieve the effect of hammer powder and powder material. Unload directly.

3. Wear-resistant combined hammer head

High alloy wear-resistant hammer head. The hammer head and hammer handle are used in combination, only the hammer head is changed, not the hammer handle.

4. Unique displacement gap adjustment technology

The hammer head does not need to be repaired after it is worn out, and the moving position can be used repeatedly. One pair of hammer heads can be used against three pairs of hammer heads.

5. Hydraulic manual start casing

Only one person can easily open and close, not only light and fast, but also safe and reliable, and easy to maintain.

Main technical parameters

Specifications	Rotating speedr/min	Powerkw	Capacityt/h	External dimensionsLxWxHmm
SF600	1000	22KWX2	6-10	1680x1516x1300
SF800	1000	37KWX2	8-15	2000x1870x1800

Two-stage crusher Main technical parameters
