Trench Fertmentation Process

2022/12/19Organic fertilizer equipment Product 394

TypeFermentation equipment
mechanicalGroove turning machine
Place of OriginChina

Product parameters

FAQ

Product introduction

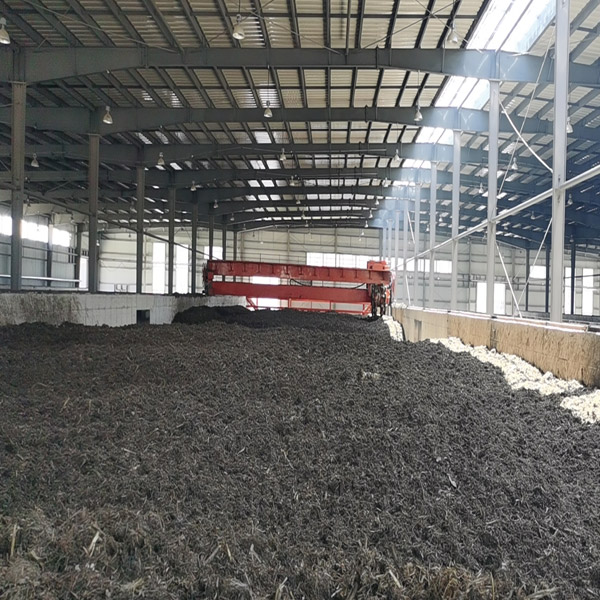

Trough fermentation is one of the traditional organic fertilizer fermentation methods. It does not have high requirements for fermentation equipment. When strip-stack fermentation is used, the materials with appropriate moisture adjustment are placed in the fermentation tank of the solar composting workshop by a distribution truck or a forklift.
The suitable height of the fermentation tank is 1.0-1.3 meters, the width is 6 meters, and the length is 50-100 meters, which can be determined according to the area of the cattle farm and the shape of the plot. The tank fermentation can realize the continuous fermentation process of feeding material at one end of the fermentation tank and discharging material at the other end, and can also realize the batch fermentation process of full tank type; it adopts forced mechanical turning and throwing to increase oxygen and pipeline ventilation for oxygenation and aeration. The solar composting workshop has good heating and heat preservation effects and control functions, and can carry out composting production all year round. In order to save investment, the solar composting workshop can also be replaced by a canopy.
Use the trough-type turning machine to turn over the fermentation of organic waste such as livestock and poultry manure, sludge garbage, sugar factory filter mud, biogas residue, mushroom residue, straw sawdust, etc. in the fermentation tank, so that the raw material pellets can fully contact with the air , mixing, fresh air and aerobic microorganisms are kept in the stockpile to generate fermentation heat, and the pile temperature forms an alternating state of medium temperature-high temperature-medium temperature-high temperature, and various beneficial microorganisms grow and reproduce rapidly in the adaptable temperature range to realize the fermentation and maturity of organic raw materials and removal of moisture.

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
