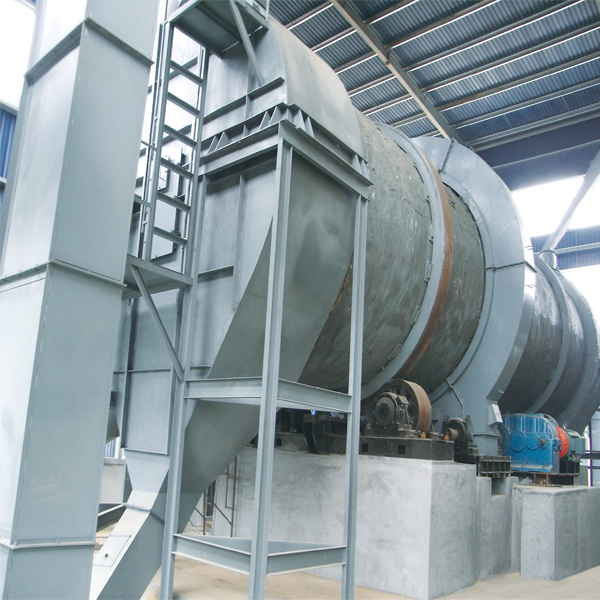

Shotcrete GranulatorShotcrete granulation process

Shotcrete granulation process

It is widely used in: compound fertilizer granulation, organic fertilizer granulation, domestic sludge granulation and drying.

2021/03/26Compound fertilizer equipment Product 408

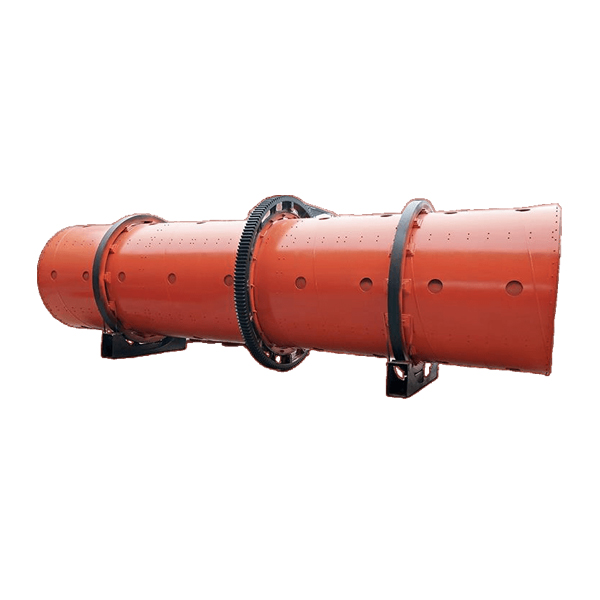

Colorsilver gray、red、grey
featureLow operating cost and high thermal efficiency
materialRubber sheet lining or acid-resistant stainless steel lining
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

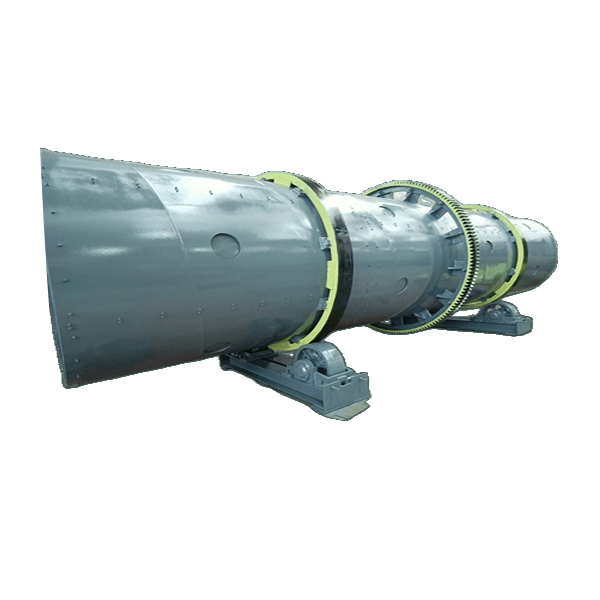

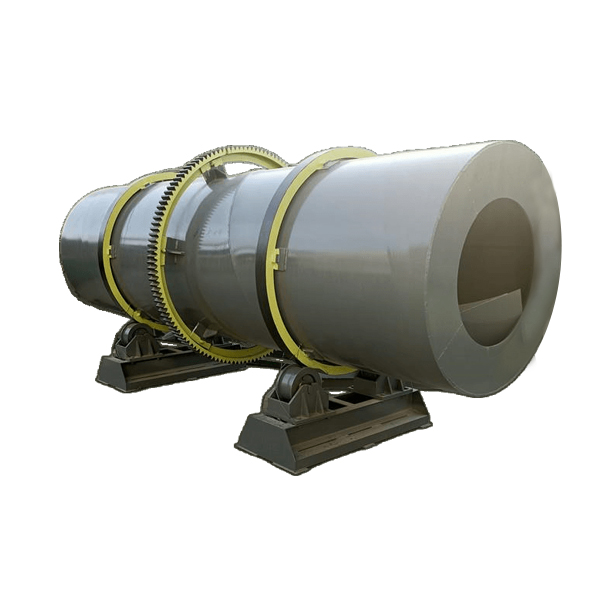

Product introduction

The barrel of the machine is lined with a special rubber plate or an acid-resistant stainless steel liner, which realizes automatic scar removal and tumor removal, and cancels the traditional scraper device. The machine has the characteristics of high ball forming strength, wear resistance, low energy consumption, long service life, convenient operation and maintenance, etc.

Shotcrete granulation working principle

Working principle The molten liquid enters the specially designed atomizing nozzle under the action of the high-pressure pump, is atomized into fine droplets, and contacts with the fine particle nuclei in the rotating cylinder, and the droplets adhere to the surface of the nuclei at high temperature Under the action of the drying medium, the heat and mass exchange process is completed quickly, the particles are enlarged, the enlarged particles are sieved, and the fine particles are returned as crystal nuclei; some of them become powdery materials and are also returned as crystal nuclei.

Mechanical equipment characteristics

The drying and granulation treatment of solution and high-temperature molten liquid materials is completed at one time.
The equipment has stable operation, simple operation and long service life.
Low operating cost and high thermal efficiency.
The product quality is good, and the material production rate is high.
The output of a single machine is large.

product structure

Shotcrete granulation rotary cylinder drying system is composed of flue gas/hot air heat source (coal, fuel oil, gas, steam, electricity), rotary cylinder drying host, solution/melt liquid atomization system, separation equipment (cyclone separator + Wet dust collector, multi-stage cyclone separator), fan, screening, control system, etc. Only continuous operation is possible. The liquid atomization system is added to the old-fashioned rotary cylinder dryer, and the product shape range of the conventional rotary cylinder is increased.

Main technical parameters

Specificationm	Inside Diametermm	Lengthmm	Inclination0	Rotating Speedr/min	Production CapacityUh	Powerkw	outside diamensionmm
3.5×14	3500	14000	1.8	5	2–3	90	18400x5500x5300
4.25×14	4250	14000	1.5	4.1	5–7	160	18600x6500x8000
4.5×16	3500	16000	1.2	4.1	8-12	220	20800x6800x8200

Shotcrete granulation Main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)
