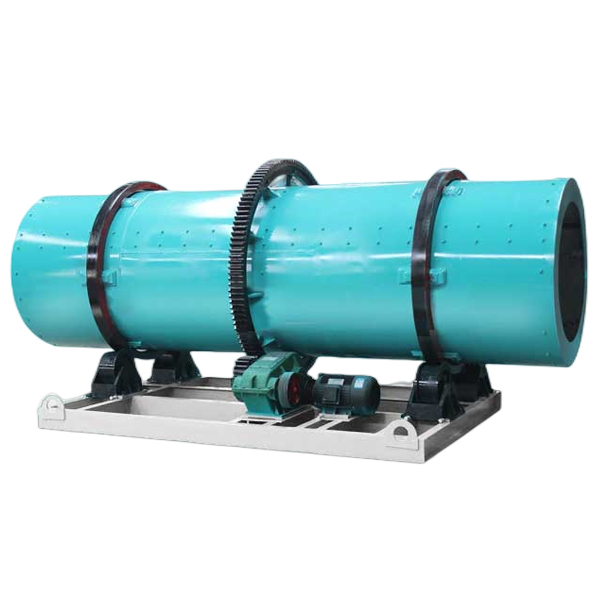

rotary drum granulator designrotary drum granulator

rotary drum granulator

A forming machine that can make materials into specific shapes

2021/03/26Compound fertilizer equipment Product 428

ColorBlue、orange、green、grey
materialMedium carbon steel plate
Place of OriginChina
Custom processingsupport
power5.5-30kw
featureswear, low energy consumption
production capacity3-33t/h

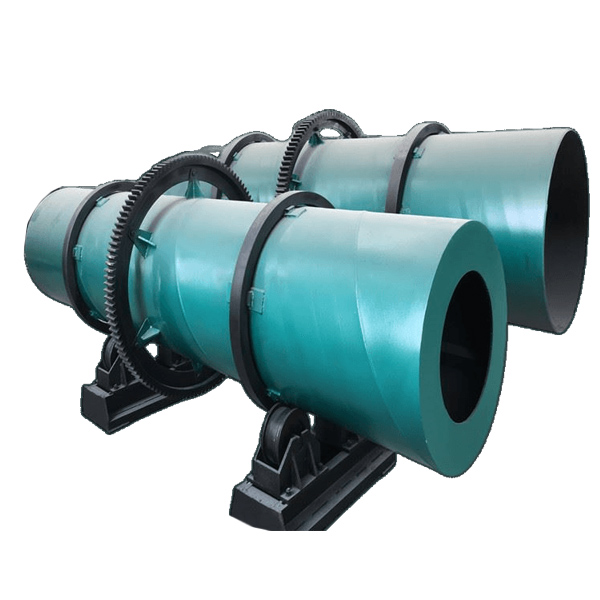

granulator rotary drum granulator

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

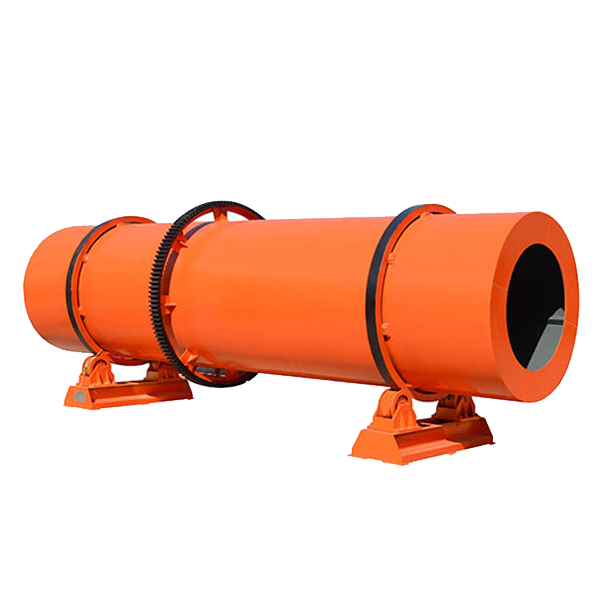

Drum granulator is a molding machine that can make materials into specific shapes. Drum granulator is one of the key equipment in the compound fertilizer industry, suitable for cold and hot granulation and large-scale production of high, medium and low concentration compound fertilizers. The main working method is granulation wet granulation. Through a certain amount of water or steam, the basic fertilizer is fully chemically reacted after the humidity is adjusted in the cylinder. Under certain liquid phase conditions, the rotation of the cylinder makes the material particles Generate extrusion force to agglomerate into balls.

rotary drum granulator working principle

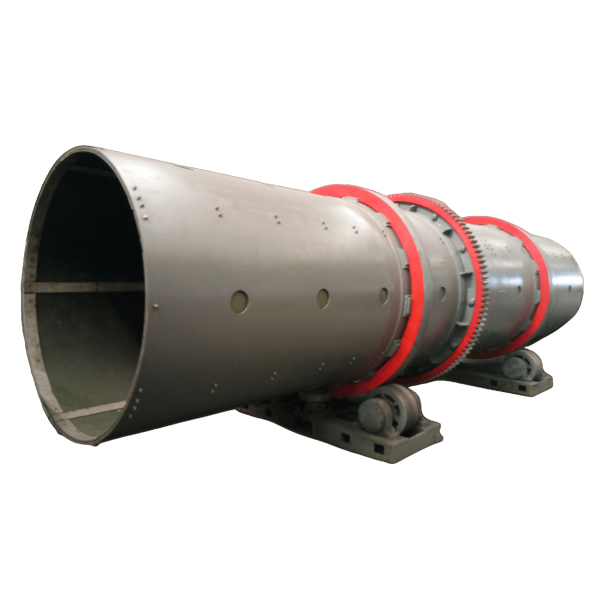

The working principle of the drum granulator is: the belt and the pulley are driven by the main motor, and are transmitted to the driving shaft through the reducer, and the split gear installed on the driving shaft meshes with the large gear ring fixed on the machine body, facing each other. Work. The material is fed from the feed end and passes through the inside of the cylinder. Through the function of the special structure inside the cylinder, it is made into granules, and finally flows out through the discharge port. Due to the continuous entry of materials and the continuous rotation of the granulator, mass production can be realized.

Mechanical equipment characteristics

Drum type granulator, in which steam, gaseous ammonia or phosphoric acid or nitrogen solution, phosphorus ammonium slurry, heavy calcium slurry are added into the machine, and the compound fertilizer granulation process of chemical reaction and heat supply is completed in the drum; or The cold granulation process of compound fertilizer with a small amount of water added. The material to be granulated passes through the rotating motion of the cylinder, and the material in the cylinder is rolled and rotated, and agglomerated into balls at a certain humidity and temperature to complete the ball making process. Features of drum granulator:

1. The ball forming rate reaches 70%, there is a small amount of returned material, and the returned material has a small particle size, which can be re-granulated;

2. Steam heating is applied to increase the temperature of the material, so that the water content of the material is low after the ball is formed, and the drying efficiency is improved;

3. Use rubber engineering plastics as the lining, the raw materials are not easy to stick to the cylinder, and play the role of anti-corrosion and heat preservation;

4. Large output, low power consumption and low maintenance cost.

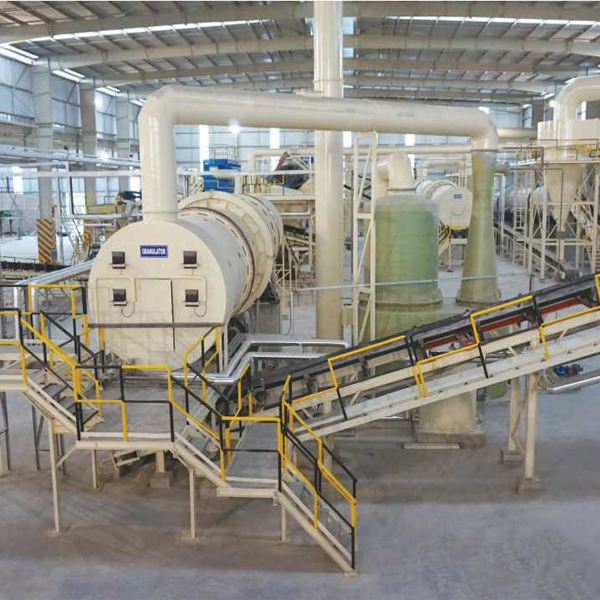

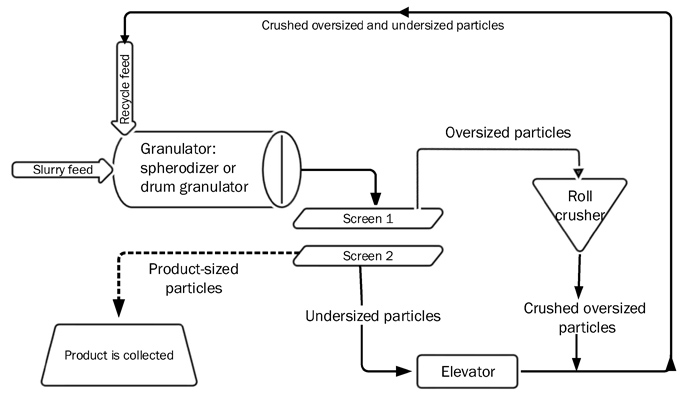

Process flow of drum granulator

Technological process：

1- Crushing process

A new type of semi-wet material pulverizer – vertical pulverizer and horizontal pulverizer. The internal structure has chain type and hammer type. No sieve, even if the material is smashed out of the water, it will not be blocked.

3- Conveying process

Belt conveyor—-mobile belt conveyor, fixed belt conveyor, etc. Belt conveyor is an indispensable economical logistics transportation equipment for rhythmic flow operation. It has strong conveying capacity and long conveying distance. The structure is simple and easy to maintain, and it can conveniently implement many advantages of programmed control and automatic operation.

5- Drying and cooling process

Rotary dryer — alias tumble dryer, biological organic fertilizer dryer, because the temperature of organic fertilizer drying can not exceed 80 degrees, so our dryer adopts hot air drying mode. Cooler—similar in shape to dryer, but different in material and performance. The main machine of the drying machine adopts the boiler post, and the main machine of the cooling machine is customized by carbon steel plate.

7- Coating process

Particle coating machine—The appearance of the main machine is similar to that of the dryer and cooler, but the internal structure is quite different. The interior of the coating machine is made of stainless steel plate or polypropylene lining. The whole machine includes the matching powder duster and oil pump.

2- Stirring process

Mixing mixer — including vertical mixer, horizontal mixer, double-shaft powerful mixer drum mixer, etc. The internal stirring structure is divided into stirring knife type, spiral type and so on. Design a suitable mixing structure according to the characteristics of the material. The outlet is designed for cylinder control and baffle control.

4- Granulation process

Special granulator for organic fertilizer—including disc granulator, new wet granulator, round throwing machine, drum granulator, coating machine, etc. According to the characteristics of raw materials, choose the appropriate granulator.

6- Screening process

Screening machine — including drum type and vibrating type. The sieving machine is divided into three-stage sieve, two-stage sieve and so on.

8- Packaging process

Automatic Quantitative Packaging Machine—Including spiral type and direct current type, single head and double head, materials are stainless steel and carbon steel, customized according to the actual needs of customers.

Technical parameters of drum granulator

specifications	Ф1800	Ф2200	Ф2500	Ф2800	Ф3200	Ф3600	Ф 4200
Plate dge height (mm)	300	500	500	640	640	450-700	950
Production capacity (t / h)	3	8	10	16	17	18-22	33
Disc rotation speed (r/min)	19	14.25	11.81	11.14	11.18	9-12	7
Main motor power (kw)	5.5	7.5	11	11	15	18.5	30
Tilt angle (o)	45	35～55	35～55	35～55	35～55	45～55	40～50
weight (kg)	2240	3150	4910	5660	6520	7120	9672

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
