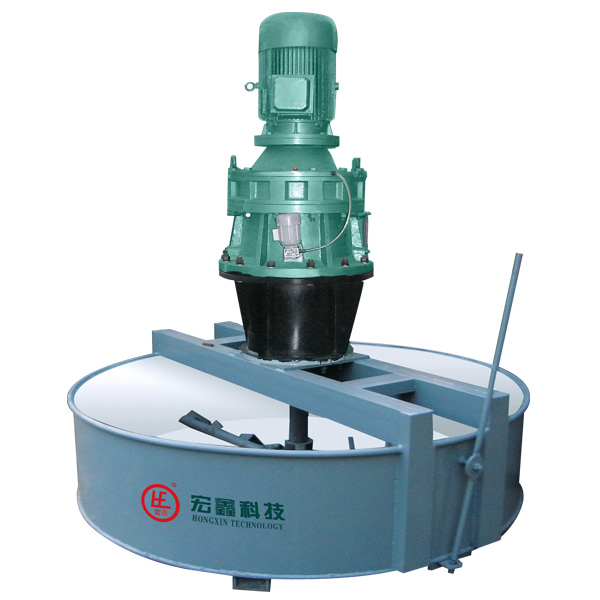

PJ pan mixer

Disk mixer is a kind of machinery mainly used for mixing raw materials

2022/12/21Organic fertilizer equipment Product 446

Colorsilver gray
featuresStir well
materialExcellent carbon steel plate
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

A pan mixer is a machine mainly used for mixing raw materials. The machine is lined with polypropylene plate or stainless steel plate, which is not easy to stick to materials and wear-resistant. The use of cycloidal pinwheel reducer has the advantages of compact structure, convenient operation, uniform mixing, and convenient discharge and transportation.

The material is fully mixed, thus improving the uniformity of mixing, and adopting a novel rotor structure, the minimum gap between the rotor and the housing can be adjusted to close to zero, effectively reducing the residual amount of material, and the inner plate is made of polypropylene. Lining or stainless steel plate, so it is not easy to stick to materials, wear-resistant, and adopts cycloidal pin wheel deceleration, which has the characteristics of compact structure, convenient operation, uniform mixing, and convenient discharge and transportation. The overall structure is more reasonable, the appearance is beautiful, and the operation and maintenance are convenient.

The motor drives the reducer to run, the reducer drives the main shaft, and the main shaft drives the stirring teeth to stir the material.

All working bodies of this machine are installed and fixed on the frame. The frame of the machine is made of high-quality carbon steel plate and channel steel welded. And passed strict product certification and specific process requirements to achieve the purpose of use.

Main technical parameters

Specifications	Diameter mm	Edge heightmm	Rotating speedr/min	Powerkw	Capacityt/h	External dimensionsLxWxHmm
PJ1600	1600	400	12	5.5	3-5	1612x1612x1368
PJ1800	1800	400	10.5	7.5	4-6	1900x1812x1368
PJ2200	2200	500	10.5	11	6-10	2300x2216x1503
PJ2500	2500	550	9	15	10-16	2600x2516x1653
PJ2800	2800	550	10.5	22	15-20	2900x2816x1653

Pan mixer manufacturers

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
