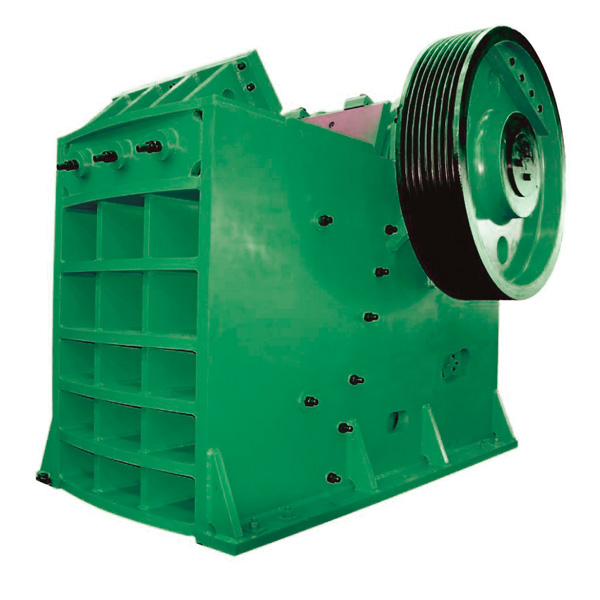

Jaw Crusher

The jaw crusher is mainly used for crushing various ores and bulk materials with medium hardness, such as limestone, and is widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries.

2022/12/21Compound fertilizer equipment Product 461

Colorgreen
featuresLow noise and less dust
materialHigh manganese steel
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

Jaw crusher is a commonly used crushing equipment in mineral processing production. Jaw crusher has the characteristics of large crushing ratio, high output, uniform particle size, simple structure, reliable operation, easy maintenance, and economical operating costs. The jaw crusher is the jaw crusher, which is an earlier crushing equipment. Because of its simple structure, firmness, reliable operation, easy maintenance and overhaul, and relatively low production and construction costs, it is widely used in metallurgy, chemical industry, Building materials, electric power, transportation and other industrial sectors are used for coarse, medium and fine crushing of various ores and rocks with a compressive strength of 147-320 MPa.

When the jaw crusher is working, the motor drives the eccentric shaft to rotate through the belt pulley, so that the movable jaw approaches and leaves the fixed jaw periodically, so that the material is crushed in multiple ways such as squeezing, rubbing, and grinding, so that the material changes from large to small and gradually falls. Until it is discharged from the discharge port.

Features of Jaw Crusher

1. The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output.

2. It has a large crushing ratio and uniform particle size.

3. Gasket-type discharge port adjustment device is reliable and convenient, with a large adjustment range, which increases the flexibility of the equipment.

4. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.

5. Simple structure, reliable operation and low operation cost.

Equipment energy saving: 15% to 30% energy saving for a single machine, and more than double the energy saving for the system.

6. The adjustment range of the discharge port is large, which can meet the requirements of different users.

7. Low noise and less dust.

Main technical parameters

Model	Feed Inlet Size(m )	Maximum Feed Size(mm )	Adjustment range of discharge outlet(mm )	Production Capacity(m/h)	Motor Power(Kw)
PE-25Qx4Q0	250×400	210	20-60	3-13	15
PE-400X600	400×600	340	40-100	10-35	30
PE-500×750	500×750	425	50-100	25-60	55
PE-600×900	600×900	500	65-180	30-85	55-75
PE-750×1060	750×1060	630	80-180	72-150	90-110

Jaw Crusher Main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
