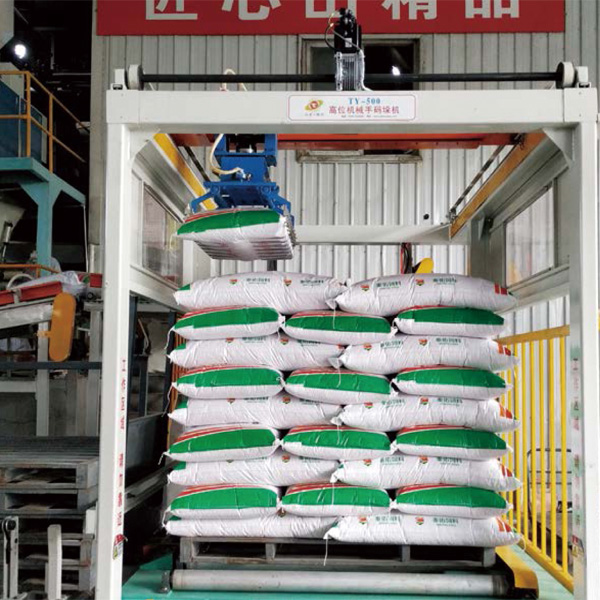

High-level Palletizer

The high-level palletizer is a palletizing equipment suitable for large chemical enterprises. It has the characteristics of fast palletizing speed, relatively high stability, and easy maintenance and maintenance. The automatic high-level palletizer is mainly used for palletizing and handling bagged materials such as feed fertilizer, grain, dry powder mortar, paint, etc.

2022/12/21Packaging equipment Product 491

Colorwhite
TypePalletizing and handling equipment
materialcarbon steel
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The fully automatic high-level palletizer is mainly used for palletizing and handling bagged materials such as feed fertilizer, grain, dry powder mortar, paint, etc. After the palletizer transports the bag to a certain height, the bag is indexed according to a predetermined method, Marshalling, pushing bags, layering, and stacking, put the bags on the pallet according to the layer, and then output the stacked full stack, and transport it to the warehouse by forklift. Fully automatic high-level palletizers generally consist of slope conveyors, weight detectors, flattening machines, slow stops, indexing machines, marshalling machines, bag pushers, layering machines, palletizers, pallet conveyors, and pallet conveyors. And pallet warehouse, etc. to form an automatic packaging and palletizing system.

Technical description of each component of high-level palletizer equipment

1. Bagging machine, quantity: 1 set, material: carbon steel

The mechanical structure is used to carry out the inverted package and posture adjustment conveying.

The conveying speed is adjustable at 15 m/min

Motor power 0.75 kW

2. Climbing conveyor, quantity: 1, material: carbon steel spray paint

The belt conveyor lifts the bag to a specified height and transports it to the transitional flat belt machine for coding.

Motor reducer

Transmission mode: chain drive

Protective baffle: standard centering plate

3. Weight detection

The belt conveying mechanism is fixed on the sensor, which can accurately detect the weight of the conveyed bag.

Detection weight 10-100kg

Detection accuracy ±25g (2σ)

Sensitivity 10g

Through capacity 1200bags/h

Conveying speed 0.5m/s

Conveyor width 600mm

Motor power 0.75kW

4. Picking machine

The belt conveyor can judge the unqualified material bag signal received from the electronic re-inspection scale, and pick out the material bag through mechanical action.

5. High position palletizer

The stacking of each layer is carried out through the three-axis servo positioning system device and the mechanical gripper structure, and the stacking of each stack of materials is coordinated by the lifting mechanism.

Model TYGW-500

Palletizing speed 500 packs/hour

Host size L3200mm×W2200mm×H3000mm

Equipment power 7.5KW

Power supply 3*AC380+N

Stacking height 600-1600mm

Palletizing layers 1-10 layers

Palletizing stations 3-12 (number of palletized bags per layer)

Air supply pressure 0.6-0.8Mpa

Equipment weight 3000kg

model	TY-MD500
Palletizing speed	500 packs/hour
Host size	L3200mmW2200mmH3000mm
equipment power	7.5KW
power supply	600—1600mm
Palletizing layers	1 to 1. layer
Palletizing station	3-12 (Number of fms stacking bags per layer)
air supply pressure	0.6—0.8Mpa
equipment weight	3000Kg

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
