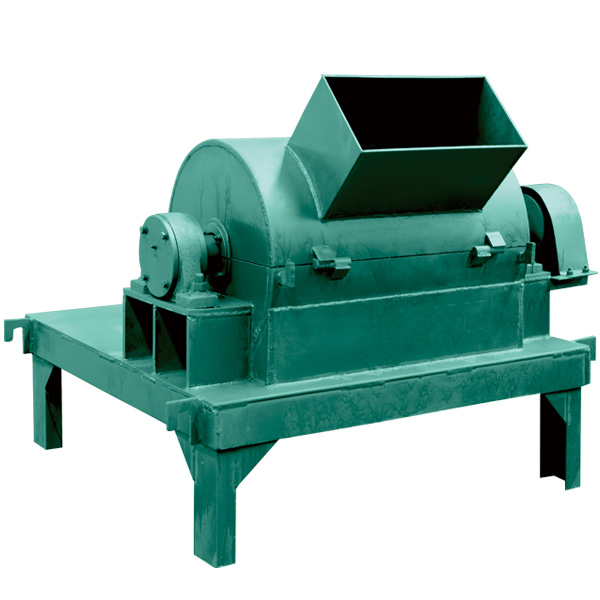

High Humidity Material Crusher

Using gangue and cinder as additives and internal fuel for brick factories; using gangue and shale to produce standard bricks and hollow bricks is a major measure that conforms to national policy and benefits society. However, the crushing of these materials, especially the crushing of wet materials has always been a problem that plagues the normal production of brick factories. After long-term investigation, careful design and bold practice, it was successfully developed and produced. The high-humidity material pulverizer breaks through a major difficulty in high-humidity material pulverization, and the market responds well.

Product features of high humidity material pulverizer:

The high-humidity material crusher is equivalent to two hammers combining the utility model patented product that can easily pulverize high-humidity coal gangue, shale, cinder and other materials into one. It is reasonably combined into a whole, and the two sets of rotors are used in series. Has the following characteristics:

1. Double rotor upper and lower two-stage crushing

The two sets of rotors connected in series make the material crushed by the hammer head of the upper rotor immediately crushed again by the hammer head of the lower rotor which rotates rapidly, and the materials in the inner cavity collide with each other rapidly and crush each other to achieve hammer powder and material. The effect of the powder is directly unloaded.

2. No sieve grate bottom, high-humidity materials, never clogged

The traditional crusher with a grate sieve plate is not suitable for raw materials with a moisture content higher than 8%. When the moisture content of the raw materials is higher than 10%, it is easy to be seriously blocked, so that the hammer head cannot rotate, the material cannot be discharged, and even burned. A broken motor seriously affects production.

No sieve grate bottom, high hard material, high humidity material, to ensure no clogging, the water content of the feed can reach 100% water content, and the fineness of the output is 90%. , Wet and dry, and it can be produced as usual in rainy days.

The design of this machine has no sieve grate bottom, no strict requirements on the moisture content of the material, there is no problem of sticking the sieve plate at all, and there is no problem that the fine powder cannot be discharged in time and repeated crushing, so the crushing efficiency is high and there is no hammer. Ineffective wear phenomenon.

3. Unique two-way gap adjustment technology

After the hammer head is worn out, the gap between the hammer head and the liner plate becomes larger and the particle size becomes thicker. The hammer head can be moved from the center to the outside to narrow the gap between the hammer head and the liner plate and continue to be used. The gap can also be adjusted by pushing the liner from outside to inside to control the discharge granularity.

4. Equipped with counterweight and balance wheel, the operation is stable and the inertia is large, saving 20% of electricity

The upper and lower sets of rotor shaft ends are equipped with flywheels. The flywheels can adjust the periodic speed fluctuations of the operation to make them run evenly and smoothly, increase the rotational inertia, overcome the movement resistance, and save more than 20% of electricity.

5. Centralized lubrication system, non-stop oil injection, convenient and quick

Road oil supply; the whole machine can simultaneously add lubricating oil to all bearings at the same time when the machine is working, which is convenient and quick. Because the whole oil circuit is closed, it can prevent dust from invading and damaging the bearing.

6. Hydraulic manual start casing

The hydraulic opening and closing device only needs one person to easily open and close the casing, which is not only light, fast, safe and reliable, but also easy to maintain.
