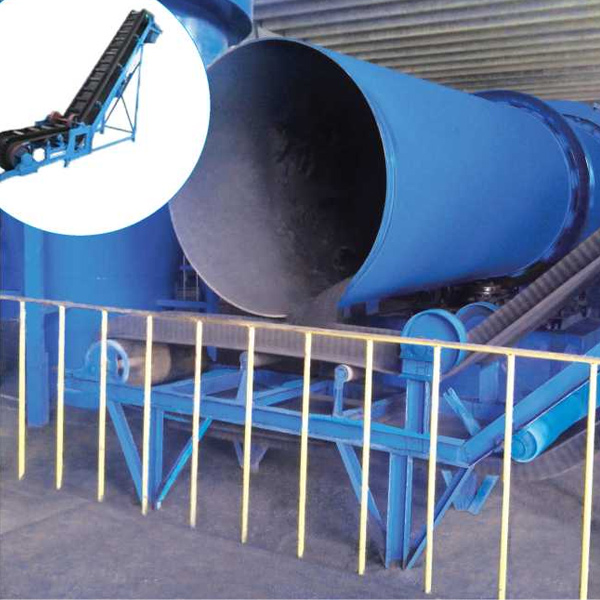

High angle belt conveyor

The high-inclination belt conveyor is a new type of continuous conveying equipment, which has large conveying capacity, strong versatility and wide application range.

2022/12/19Organic fertilizer equipment Product 421

ColorBlue
working environment-15℃—+40℃
materialCorrugated sidewall conveyor belt
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The large-inclination belt conveyor is suitable for materials with a unit mass of 500-2500kg/m3 and a maximum block size of about 100-250mm); simple structure, convenient maintenance, small footprint and investment saving (can replace conveyors and bucket elevators Combined arrangement form and directly choose this model), easy to arrange and other characteristics, so it is widely used in coal, electric power, metallurgy, chemical industry, food and other industries.

1. The large-inclination belt conveyor is a general-purpose continuous conveying equipment for bulk materials. It uses a conveyor belt with corrugated ribs and transverse partitions. Therefore, it is especially suitable for large inclination angle transportation.

2. This machine can be used in industries such as coal, chemical industry, building materials, metallurgy, electric power, light industry, grain, port, shipbuilding, etc., and the specific gravity of transporting accumulation is 0.5-2.5t in the range of -15℃—+40℃ in the working environment humidity /m3 of various bulk materials.

3. For materials with special requirements, such as high temperature, materials with acid, alkali, oily substances or organic solvents, special conveyor belts are required.

4. The sidewall belt conveyor has a conveying inclination angle within the range of 0°-90°

Main technical parameters

Specifications	Width of nibber beltmm	Conveying capacitym³/h	Belt speedm/s	Working inclination0	Powerkw
B500	500	6-18	0.8	25-70	1.5-3
B650	650	10-20	0.8	25-70	22-4
B800	800	15-35	0.8	25-70	3-5.5
B1000	1000	20-45	0.8	25-70	4-7.5

High angle belt conveyor Main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

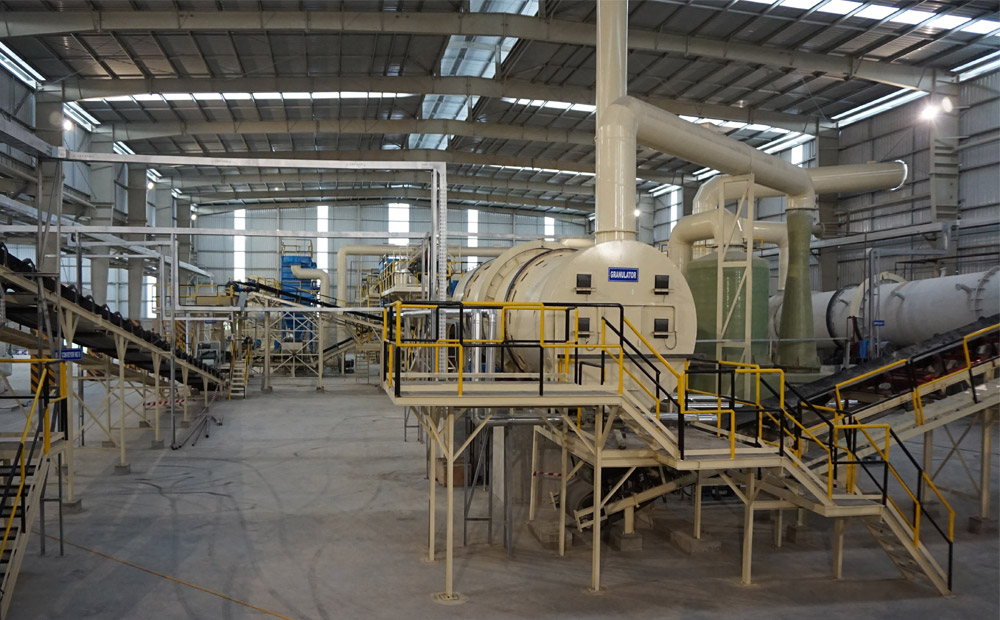

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

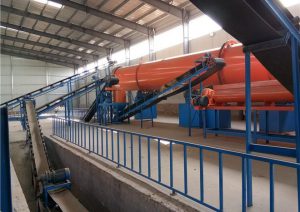

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
