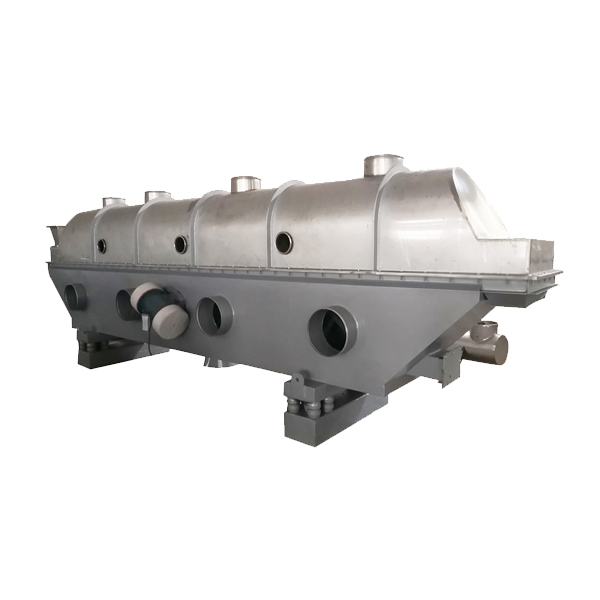

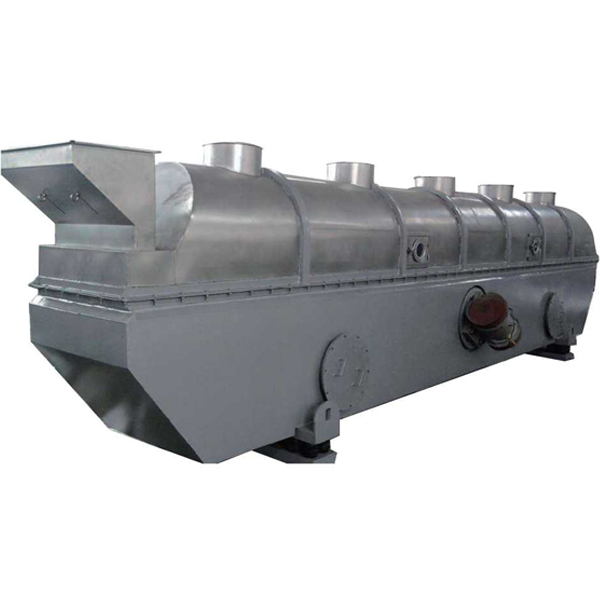

Fluidized bed dryer

The fluidized bed dryer is mainly used for drying rice, wheat, rapeseed, soybean drying and peeling germ flakes, soybean meal, rapeseed meal, corn germ, monosodium glutamate, distiller’s grains, feed yeast, salt, etc.

2022/12/19Organic fertilizer equipment Product 427

Colorsilver
effectdrying
materialstainless steel and carbon steel
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

Fluidized bed dryer is an enhanced special-purpose drying device, which is usually used for final drying of materials. Since the material is fluidized by mechanical vibration during the drying process, it not only facilitates the turbulent flow in the boundary layer, enhances heat and mass transfer, but also ensures that the drying equipment works under relatively stable flow conditions. In addition to the excellent drying function, this equipment can also be equipped with material granulation, cooling, screening and conveying processes according to the process requirements. It has been widely used in industrial sectors such as sugar, medicine, fertilizer, chemical industry, plastics, dairy products, salt industry, and mining and metallurgy. This technology is basically mature and has been serialized.

Working principle of fluidized bed dryer

Continuous fluidized bed dryer is also called horizontal fluidized bed dryer. A certain amount of air enters the dryer after being filtered, dehumidified (optional) and heated, and the temperature of the incoming air can be precisely controlled. The wet material is evenly fed into the first chamber of the fluidized bed (with a rake device) through the feeder, and fully contacted with the hot air. The semi-dry products after passing through the first chamber are basically in a loose state, which ensures the flow quality of the whole drying process and finally meets the drying requirements of the products. The entrained fine powder exhaust gas that has been in contact with the material, relying on the principle of equipment volume expansion, makes the fine powder reach an ideal sedimentation velocity in the drying chamber, thereby minimizing the fine powder content in the discharged air. The exhaust gas is dedusted by the cyclone separator and the bag filter, and then washed by the water curtain dust collector before being released into the air.

Features

◆The residence time of materials in the fluidized bed can be adjusted at will, and products with lower water content can be produced.
◆High heat transfer intensity and high thermal efficiency, and the raking device can break up materials that are easy to agglomerate.
◆The amount of feed can be adjusted according to the temperature change in the fluidized bed for continuous or batch production.
◆The material in the fluidized bed is evenly dried, which can avoid local overheating of the material.
◆The special air distribution plate is used to push the material forward without losing the material.
◆The system adopts multi-stage dust removal, which improves product availability and reduces material loss.
◆The system adopts a fully enclosed structure, and the drying and cooling processes can be completed in one device at the same time.
◆Continuous operation, large processing capacity, suitable for mass production

Main technical parameters

Model	Fluid Area(m2)	Dehydration capacity(kg/h)	Fan Power(kW)	outside diamension(mm)
HXZ10	1.0	50-80	5.5	2500X600X1500
HXZ10	2.0	80-120	11	2800X700X1600
HXZ30	3.0	150-200	15	3000X1000X1800
HXZ40	4.0	220-300	22	3800X1200X2000

Fluidized bed dryer Main technical parameters
