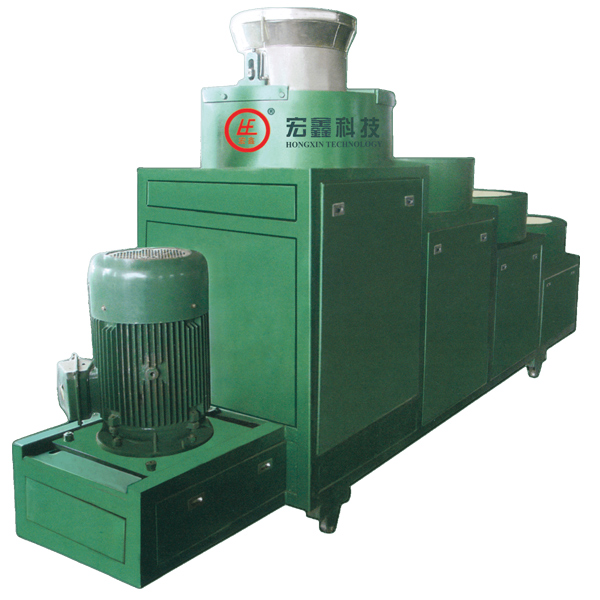

Flat film extrusion granulatorFlat die extrusion granulation process

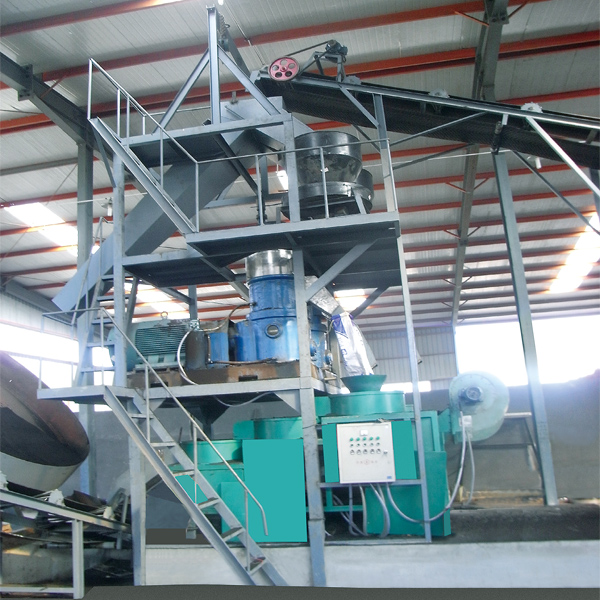

Flat die extrusion granulation process

The flat die extrusion granulator is an ideal equipment for the production of organic fertilizers and feed pellets

2021/03/26Organic fertilizer equipment Product 421

Colorgreen
TypeGranulator
Place of OriginChina
pellets producedCylindrical

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

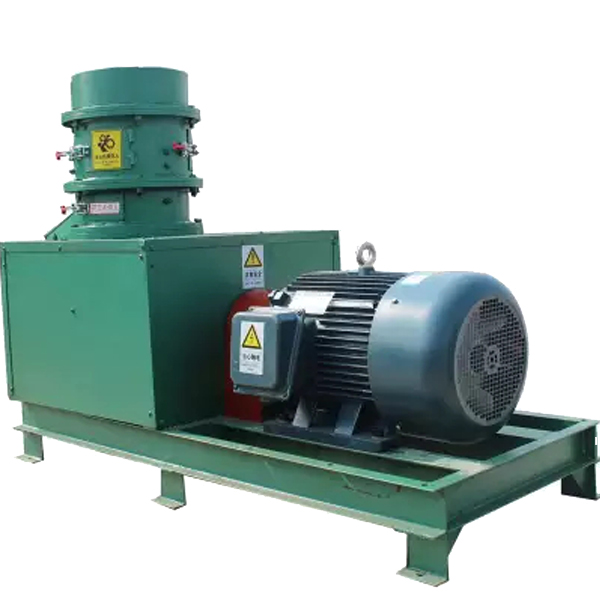

The flat die extrusion granulator can produce pellet feed, organic fertilizer, and can produce cylindrical granules. It can also be connected with polishing equipment to roll cylindrical granules into balls at one time, without returning granules, high ball forming rate, good strength, and beautiful appearance. It is an ideal equipment for the production of organic fertilizer and feed pellets. The flat film granulator is used to granulate various organic substances after fermentation, which breaks through the conventional organic granulation process. It does not need to dry and crush the raw materials before granulation, and can process cylindrical granules directly by batching, which can save a lot of energy. energy.

Features of flat die extrusion granulator:

1. The pressure roller is used, and the linear speed of both ends is consistent with the inner and outer rings of the mold plate. There is no dislocation friction between the wheel and the mold, which reduces resistance, reduces kinetic energy loss, prolongs the service life of the mold, and reduces production costs.

2. The pressing rollers are evenly distributed, and the operation is stable. At the same time, the pressing area is increased, and the production efficiency is improved.

3. With the screw center pressure regulating structure, the gap between the molds varies with the size, and it is suitable for different materials to ensure the pressing effect.

4. This model is equipped with Φ1.5-Φ20mm various hole diameter molds, which are suitable for granulation of different materials and achieve better benefits.

5. The produced particles are cylindrical.

6. The content of organic fertilizer is high, and the granulation of pure organic matter can be realized.

7. Utilizing the characteristics that organic particles can be embedded and grown up under the corresponding action, no binder is needed during granulation.

8. The granules are firm and can be sieved after granulation to reduce drying energy consumption.

9. The fermented organic matter does not need to be dried, and the moisture content of the raw material can be 20%-40%.

Main technical parameters

Model	mmGranule Size	％Qualified Granule Rate	％ Granule Moisture	NGranule Strengh	t/hProduction Cap acity	kwPower
37	3、 4、 6、 8	>90	<5	>8	0.5-1	37
45	3、 4、 6、 8	>90	<5	>8	1–1.5	45
55	3、 4、 6、 8	>90	<5	>8	1.5-2.5	55
75	3、 4、 6、 8	>90	<5	>8	2-3.5	75

Flat die extrusion granulation technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
