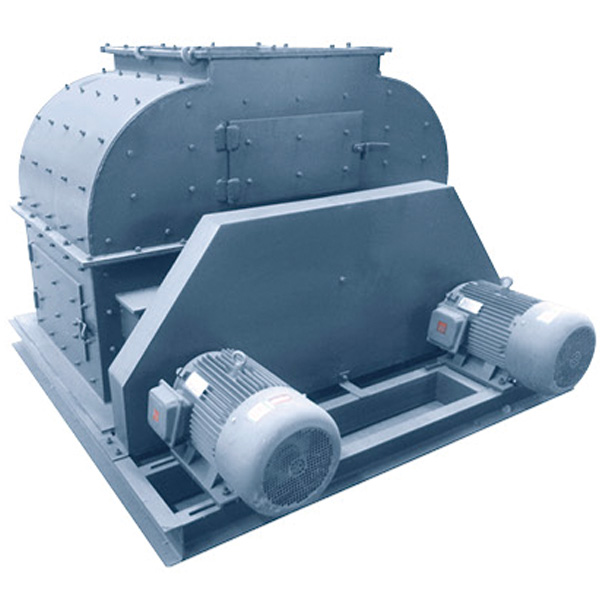

Double-Shaft Horizontal Blade Crusher

The horizontal pulverizer is widely used in the mainstream equipment of fertilizer and mineral processing equipment

2022/12/21Compound fertilizer equipment Product 457

Colorsilver gray
materialalloy steel
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The double-shaft horizontal blade crusher is a kind of adjustable crushing equipment without sieve bars, which is optimized and designed on the basis of absorbing advanced fine crushing equipment. It is widely used in the mainstream equipment of fertilizer and mineral processing equipment. The horizontal pulverizer can be used for crushing organic fertilizers, livestock and poultry manure, and can also be used for crushing various materials such as limestone, cement clinker, mixture, gypsum, coal gangue, slag, copper ore, iron ore, etc. One of the most commonly used crushing equipment in the fertilizer industry, it is suitable for the crushing of raw materials and returned materials.

The working principle of the double-axis horizontal blade pulverizer is that the material enters from the feed port and collides with the high-speed rotating casing in the casing. The manganese steel strips collide, so that they become powder or particles below 1mm are discharged from the lower part after several impacts during the falling process.

Composition of double-shaft horizontal blade pulverizer

① Shell: The feed hopper and cylinder are welded by steel plates. An inspection door is provided on the casing for maintenance.

② Rotor part: The rotor part is mainly composed of the main shaft, flat key, rotor frame, shaft sleeve, etc. The main shaft is supported by heavy-duty roller bearings, which can have stability when the material load is large, and at the same time extend the life of the bearing.

③ Expansion sleeve coupling: It relies on positive pressure to generate expansion force, and through the expansion force to generate friction force to transmit torque; it also has the advantages of large transmission torque, good neutrality, simple and reliable structure, and convenient disassembly and assembly. To buffer and overload protection.

④ Adjustment mechanism: It is adjusted by bolts, nuts and gaskets, with simple structure, convenient maintenance, and flexible and rapid operation. The bolt and gasket are used to adjust the gap between the grinding hammer head and the impact plate, and the wear of the hammer head and the impact plate can be compensated.

⑤ Crusher protection: belt drive and expansion sleeve coupling are adopted, both of which have the function of overload protection.

Main technical parameters

Specifications	Rotating speed	Power	Capacity	External dimensionsLxWxH
	r/min	kw	t/h	mm
WSF600	1460	11X2	10-15	1680X1516X1100
WSF800	1460	22X2	13-20	2000X1870X1700

Double-Shaft Horizontal Blade Crusher main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
