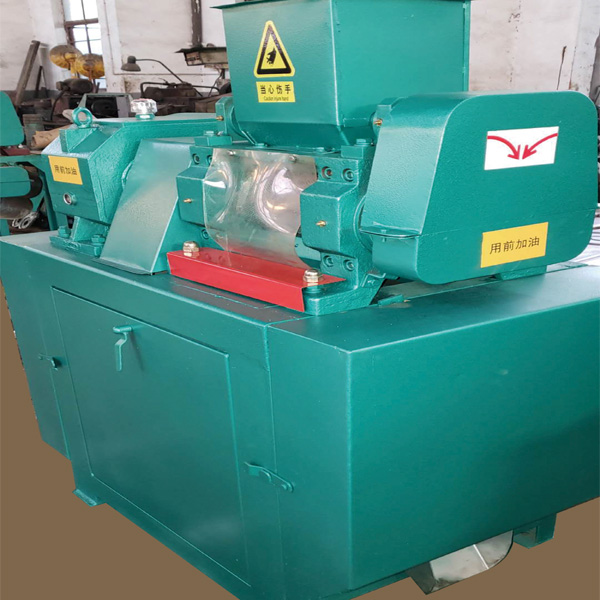

Double roller extrusion granulator

The double-roll extrusion granulator is the key equipment for ammonium chloride, ammonium sulfate and compound fertilizer granulation. It has advanced technology, reasonable design, compact structure, novelty and practicality, and low energy consumption. It is matched with corresponding equipment to form a small production line. It can form a continuous and mechanized production with a certain production capacity.

2022/12/21Organic fertilizer equipment Product 589

Colorgreen
applicationCompound fertilizer granulation
materialstainless steel material
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The double-roll extrusion granulator is a granulation equipment. It is produced by non-drying normal temperature process, one-time molding, output 800KG-1000KG/hour. The equipment has low investment, quick effect and good economic benefit.

The complete set of equipment is compact in layout, scientific and reasonable, and advanced in technology. Energy saving and consumption reduction, no discharge of three wastes, stable operation, reliable operation, and convenient maintenance. Wide adaptability of raw materials, suitable for granulation of various raw materials such as fertilizers, medicines, chemicals, feeds, etc., and the product granulation rate is high.

It can produce compound fertilizers of various concentrations and types (including ammonium chloride, ammonium sulfate, organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer, etc.). Especially rare earth, potassium fertilizer, ammonium bicarbonate series compound fertilizer granulation.

It adopts eugenic formula, no need to dry, and is produced at normal temperature. The product is rolled and formed at one time, so that the product quality meets the technical index requirements of compound fertilizer. It is used for the production of high, medium and low concentration special compound fertilizer and compound fertilizer industry for various crops. Energy-saving and consumption-reducing replacement products.

The process is short, low energy consumption, large output. The dry powder is directly granulated without subsequent drying process, which is more conducive to the connection and transformation of the existing production process. The particle strength is high, and the increase of bulk specific gravity is more significant than other granulation methods.

It is especially suitable for occasions where the specific gravity of product accumulation is increased. The operation is flexible and the application range is wide. The extrusion force can be adjusted by hydraulic pressure.

Main technical parameters

Model	DGZ220	DGZ240	DGZ250
t/hProduction Capacity	0.5—1	0.8—1.2	1—1.5
mm Granule Size	3、3.5、4、8	3、3.5、4、8	3、3.5、4、8
％Moisture	1——3	1——5	1——5
N Granule strength	11-13	10-13	10-13
kw Motor Power	15	18.5	22
mm Outside Diamension	1250X700X1050	1560X800X1550	2000X850X1650

Double roller extrusion granulator Main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
