Disc Granulator

Widely applicable to the processing of bio-organic fertilizer spherical particles

2021/03/26Compound fertilizer equipment Product 394

Colorsilver、grey
structureArc
materialsteel plate
Place of OriginChina
Custom processingsupport
featuresUniform granulation and high granulation rate
angle45-55

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

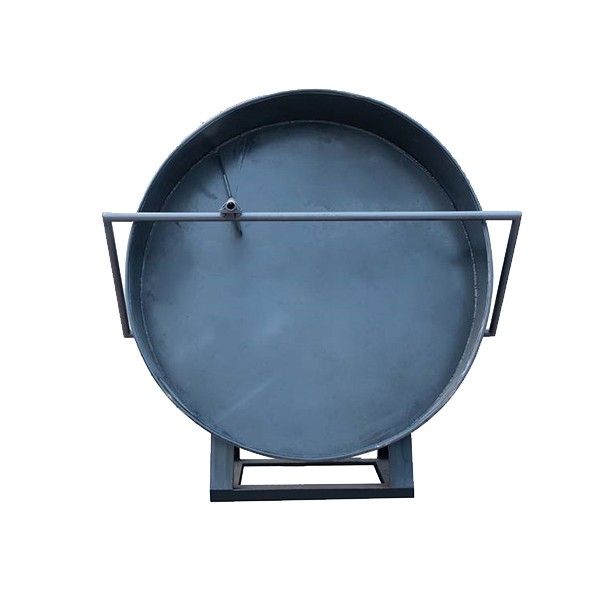

Product introduction

The disc granulator is an ideal granulator for producing organic fertilizer and compound fertilizer. You can use it to granulate powdery raw materials into granules, which play an important role in fertilizer production lines。

The granulation disc adopts an overall arc structure, and the granulation rate can reach more than 93%. The granulation tray is equipped with three outlets, which is convenient for intermittent production operations, greatly reduces labor intensity and improves labor efficiency. The reducer and the motor are driven by a flexible belt, which can start smoothly, reduce the impact force and improve the service life of the equipment. The bottom of the granulation tray is reinforced with multiple radiant steel plates, which is durable and never deformed. Thickened, heavier, and sturdy base design, no need for anchor bolts, stable operation.

disc granulator working principle

Various dry powder materials are fed from the top of the equipment, degassed, spirally pre-compressed, and transported to the arc-shaped slots of the two rollers. The two rollers rotate at the same speed and counter-rotate, bite the materials into the grooves and perform forced compression. After passing through the compression zone, the pressure gradually decreases, and its surface tension and gravity make it come out naturally, enter the granulator and granulator for crushing, trimming, and then enter the vibrating screen for screening, and the qualified products are sent to the finished product through the conveyor. Bin or direct packaging, the powdery under-sieve material is sent back to the raw material bin through the return device for secondary rolling, and the extrusion force can be adjusted by the hydraulic system according to the needs of the particle strength. By changing the grooving form of the roller surface, materials such as flakes, strips, olives, and oblate balls can be obtained.

Mechanical equipment characteristics

1. The structure of the disc granulator is novel and reasonable, the weight is reduced and the height is reduced. The process layout is flexible and convenient, suitable for the transformation of old factories.

2. The inclination angle of the large plate can be adjusted. Angle spacers are used for flexible and convenient adjustment.

3. The unique unpowered combined scraper is integrated to reduce the auxiliary power consumption.

4. The large plate is composed of a plate body and a plate segment. Reduce the main motor power. The disc section can be adjusted up and down along the disc body. The end of the disk section is a side flange, which can ensure that the balls will not be strained or torn when they are discharged from the disk.

5. New dredging design, with unpowered combination scraper to clear the edge and bottom, and the scraper to clear the corners, combined with the unique treatment technology of the disc body, the effect of dredging and balling is good, and there will be no big mud balls, and the diameter of the material ball is 90% In 3-5mm.

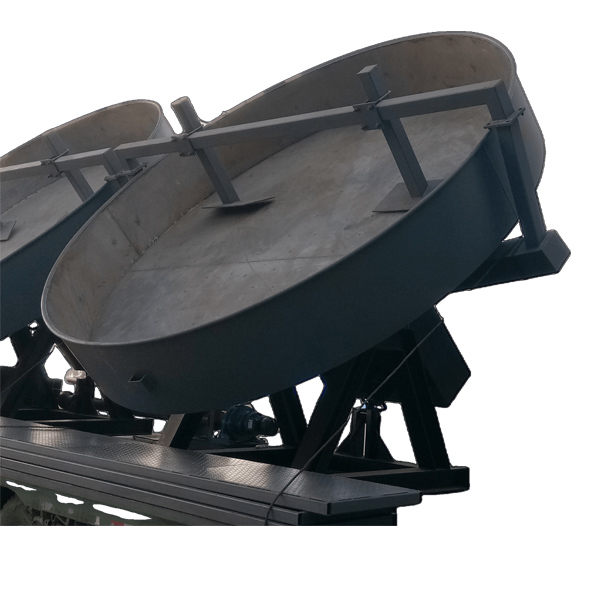

product structure

The disc granulator is composed of a large plate, a large gear, a transmission part, a frame, a base, a scraper frame, and a non-powered scraper.

The main body of the disc granulator, the main body includes the frame, the adjustment part and the granulation disc and other structures;
One main reducer, the input shaft is equipped with a pulley, and the output shaft is equipped with a pinion;
One main point motor, equipped with one pulley;
Supporting granulation disc device, including one main shaft, two sets of roller bearings, and two bearing seats;

Main technical parameters

Specifications	Diametermm	Edge heightmm	Rotating speedr/min	Inclination0	Powerkw	Capacityt/h	External dimensions LxWxHmm
YP2645	2600	450	16.7	40°-55°	7.5	1-2	2600x2000x2600
YP2845	2800	450	14	40°-55°	7.5	3-4	2800x2200x2800
YP3048	3000	480	13	40°-55°	11	4-5	3000x2500x3000
YP3250	3200	500	12	40°-55°	11	5-7	3200x2800x3200
YP3550	3500	500	11.5	40°-55°	15	7-9	3600x3200x3500
YP4055	4000	550	11.5	40°-55°	18.5	9-10	4100x3400x4000
YP4555	4500	550	11.5	40°-55°	22	10-12	4600x3700x4500
YP5055	5000	550	10.5	40°-55°	22	10-15	5100x3800x5000

Disc Granulator Main technical parameters

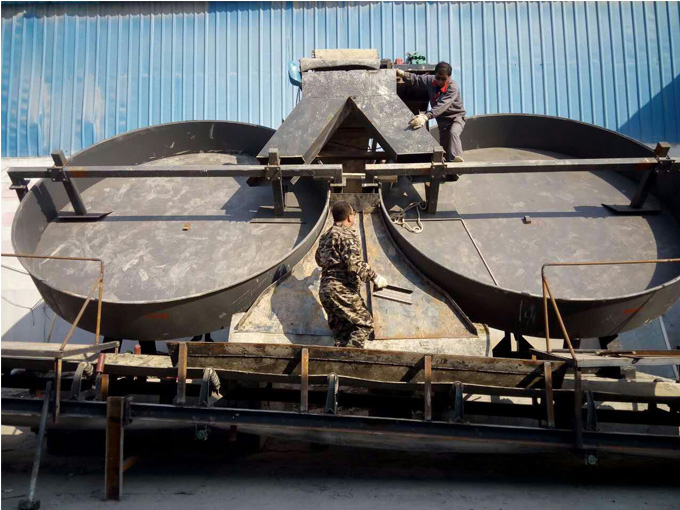

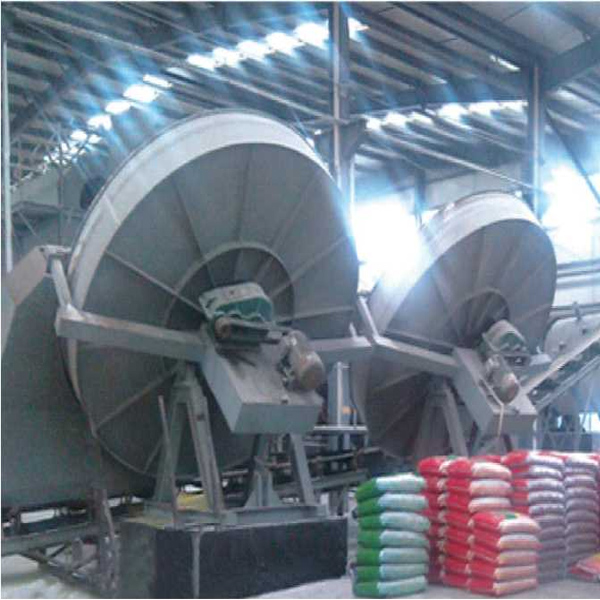

Disc granulator installation
