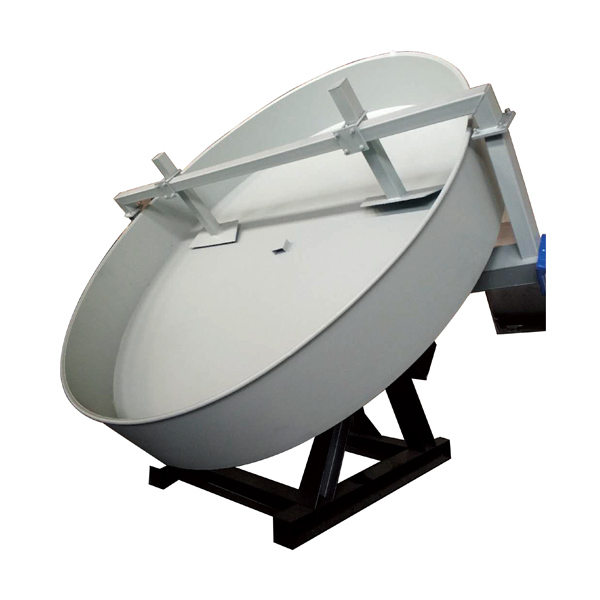

Disc coating machine

The disc coating machine is a device that coats powder or liquid on the surface of particles to realize the coating process.

2022/12/19Compound fertilizer equipment Product 391

Colorwhite
structureoverall arc
materialHigh-strength FRP, carbon steel
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The disc coating machine is a device for coating powder or liquid on the surface of particles to realize the coating process. According to the process requirements, the equipment has a special design in the internal structure. It is an effective special coating equipment for fertilizers. The use of coating technology can effectively prevent the agglomeration of fertilizers and achieve the effect of slow release.

The granulation disc adopts an overall arc structure, and the granulation rate can reach more than 93%. The granulation tray is equipped with three outlets, which is convenient for intermittent production operations, greatly reduces labor intensity and improves labor efficiency. The reducer and the motor are driven by a flexible belt, which can start smoothly, reduce the impact force and improve the service life of the equipment. The bottom of the granulation tray is reinforced with multiple radiant steel plates, which is durable and never deformed. Thickened, heavier, and sturdy base design, no need for anchor bolts, stable operation.

The main technical parameters

Model	Diameter(mm)	Edge Height(mm)	Outside diamension(mm)	Rotating Speed(r/min)	Power(kw)
YPBM2645	2600	450	2600x2000x2600	16	7.5
YPBM2845	2800	450	2800x2200x2800	14	7.5
YPBM3048	3000	480	3000x2500x3000	13	11
YPBM3250	3200	500	3200x2800x3200	13	11

Disc coating machine main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
