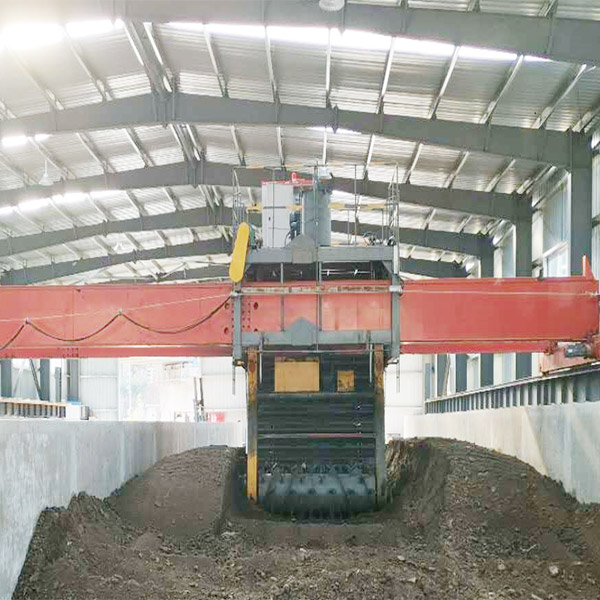

Chain plate tipping machine

The chain plate turner is suitable for deep tank aerobic composting of organic solid waste such as livestock and poultry manure, sludge, and garbage. The machine works along the track of the fermentation tank, and its turning and throwing operation is conducive to accelerating the fermentation and maturity of materials in the fermentation tank, reducing moisture and improving the quality of compost. The series specifications of this machine can meet various widths of fermentation tanks.
Chain plate type turning machine features:

1. Adopting chain drive and rolling support supporting plate structure, the turning resistance is small, saving electricity and energy, and is suitable for deep groove operations.
2. The flipping pallet is equipped with a flexible tensioning and elastic damping system to protect the transmission system and working parts.
3. There are 390 removable wear-resistant curved teeth on the flipping pallet, which has strong crushing ability and good oxygenation effect of the pile.
4. When turning and throwing, the material stays on the pallet for a long time, is scattered at a high position, has sufficient contact with the air, and is easy to reduce moisture.
5. Through the horizontal and vertical displacement, the turning and throwing operation at any position in the tank can be realized, which is flexible and flexible.
6. The lifting of the turning and throwing working parts is controlled by a hydraulic system, which is flexible, safe and fast.
7. The machine can be remotely controlled to move forward, traverse, turn over and quickly retreat, etc., to improve the operating environment.
8. Optional trough-type raw material distribution machine, automatic discharge device, solar fermentation room and ventilation and aeration system, etc.
9. Equipped with a moving machine to change slots, it can realize multi-slot operation of a turning and throwing machine, saving investment.

The chain-plate type throwing machine has a compact structure and advanced technology. It uses some beneficial microorganisms to promote the rapid decomposition of organic waste such as livestock and poultry manure. It adopts the pool-type continuous aerobic fermentation technology to quickly decompose, dewater and sterilize organic waste. , Deodorization, to achieve the purpose of harmless, resource and reduction treatment, low energy consumption, stable product quality.
The intelligent and automatic control of the turning process of the fermented material makes the fermented material produce a certain turning displacement in the tank, and the material moves back in a regular and continuous gradual manner in the tank, thus forming a continuous aerobic fermentation process. The chain plate turning machine can be used together with automatic feeding and automatic discharging equipment, realizing one machine with multiple functions, saving manpower and material resources (forklift feeding) and other processes.
