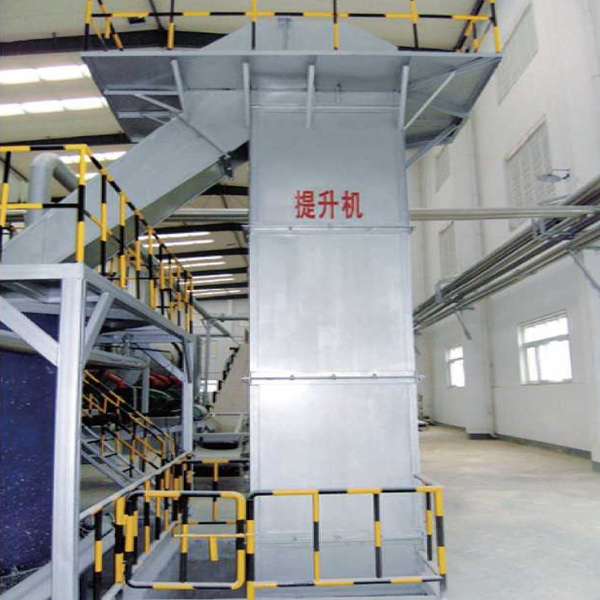

Bucket Elevator

The hoist is widely used to transport various powder and granular materials to facilitate the next step of process production.

2022/12/19Compound fertilizer equipment Product 385

Colorsilver gray
performancelong lasting、good operational reliability
materialcarbon steel, stainless steel
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The hoist is a large-scale mechanical equipment that is transported by changing the potential energy, such as mine hoist, dam crossing hoist, etc. Broadly speaking, elevators, cranes, hoists, stabilizers, cranes, hoists, etc. can all be called hoists. Hoists generally refer to large-scale mechanical equipment with high power and strong lifting capacity. The transportation process is completed by dragging the flexible steel wire rope and the transported goods up and down by the power machinery. The steel wire rope is an indispensable and important part of the lifting machinery. The main varieties are phosphating coated steel wire rope, galvanized steel wire rope, stainless steel wire rope, and smooth surface. Wire rope and so on.

Hoist Product Features

Driving power

The driving power is small, and it adopts inflow feeding, induction unloading, and large-capacity hopper intensive arrangement. There is almost no feeding and digging phenomenon when the material is lifted, so there is less reactive power.

Lift range

The lifting range is wide. This type of hoist has less requirements on the types and characteristics of materials. It can not only lift general powdery and small granular materials, but also can lift materials with high abrasiveness. It has good sealing performance and less environmental pollution.

operating capacity

Good operation reliability, advanced design principles and processing methods ensure the reliability of the whole machine operation, and the trouble-free time exceeds 20,000 hours. High lifting height. The hoist runs smoothly, so a high lifting height can be achieved.

service life

The service life is long, the feeding of the elevator adopts the inflow type, no need to use buckets to dig materials, and there is little extrusion and collision between materials. The machine is designed to ensure that the materials are rarely scattered during feeding and unloading, which reduces mechanical wear and tear.

working principle

The hopper scoops up the material from the storage below, lifts to the top with the conveyor belt or chain, bypasses the top wheel and turns down, and the bucket elevator pours the material into the receiving trough. The transmission belt of the bucket elevator with transmission is generally a rubber belt, which is installed on the lower or upper driving roller and the upper and lower redirecting roller. The chain-driven hoist is generally equipped with two parallel transmission chains, with a pair of drive sprockets on the top or bottom, and a pair of redirection sprockets on the bottom or top. Elevators are generally equipped with a casing to prevent dust from flying in the bucket elevator.

Main technical parameters of hoist

Specifications	Lifting capacty	Punning speedm/s	Lifting heightm/s	Material sizemm	Powerkw	stance between bucketstmm	Bucket volumeL
HL250	5-15	1.25	≤30	<40	22-4	250	4
HL300	8-20	1.25	≤30	<40	4-5.5	300	6.4
HL400	10-30	1.25	≤30	<40	5.5-7.5	400	10.5
HL500	15-35	1.25	≤30	<50	7.5-11	500	15.5
HL630	20-65	1.25	≤30	<50	11-18.5	630	22.8

Elevator Main technical parameters of hoist

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
