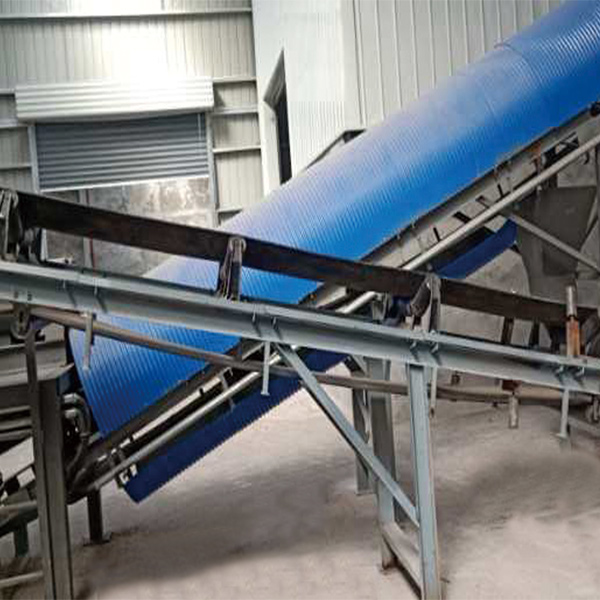

Belt Conveyor

A belt conveyor is a machine that transports materials in a continuous manner with a friction drive

2022/12/19Organic fertilizer equipment Product 381

ColorBlue
materialRubber, Silicone, PVC, PU
Place of OriginChina
ambient temperature-20°C to +40°C

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

A belt conveyor is a friction driven machine that transports material in a continuous manner. It is mainly composed of frame, conveyor belt, idler roller, roller, tensioning device, transmission device and so on. It can form a material conveying process from the initial feeding point to the final unloading point on a certain conveying line. It can not only transport broken materials, but also transport finished items. In addition to pure material transportation, it can also cooperate with the requirements of the technological process in the production process of various industrial enterprises to form a rhythmic assembly line.

Belt conveyor is also called belt conveyor. The conveyor belt moves according to the principle of friction transmission. It is suitable for conveying easy-to-take powdery, granular, small pieces of low-abrasive materials and bagged materials, such as coal, gravel, Sand, cement, fertilizer, grain, etc. The belt conveyor can be used in the ambient temperature range of -20°C to +40°C, and the temperature of the conveyed material is less than 60°C. Its captain and assembly form can be determined according to the user’s requirements. The drive can be an electric drum or a drive device with a drive frame.

working principle

The belt conveyor is mainly composed of two end rollers and a closed conveyor belt tightly sleeved on them. The pulley that drives the conveyor belt to rotate is called a drive pulley (drive pulley); the other pulley that only changes the direction of movement of the conveyor belt is called a redirection pulley. The drive pulley is driven by a motor through a reducer, and the conveyor belt is dragged by the friction between the drive pulley and the conveyor belt. The drive pulleys are generally installed on the discharge end in order to increase traction and be easy to drag. Material is fed on the feed-side and landed on the rotating conveyor belt, then rely on the conveyor belt friction to be delivered to discharge end.

scope of application

The belt conveyor can be used for horizontal or inclined transportation. It is very convenient to use and is widely used in various modern industrial enterprises, such as: mine underground roadways, mine ground transportation systems, open pit mines and mineral processing plants. According to the requirements of the conveying process, it can be conveyed by a single unit, or can be composed of multiple units or combined with other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different layouts of the operation line.

Belt conveyor is an ideal high-efficiency continuous transportation equipment. Compared with other transportation equipment (such as locomotives), it has the advantages of long transportation distance, large transportation volume, continuous transportation, etc., and it is reliable in operation and easy to realize automation and centralized control. Especially For high-yield and high-efficiency mines, belt conveyors have become key equipment for coal mining electromechanical integration technology and equipment.

Features

The main feature of the belt conveyor is that the fuselage can be easily expanded and contracted. It is equipped with a belt storage bin. The tail of the machine can be extended or shortened with the advancement of the coal mining face. It has a compact structure and can be laid directly on the roadway floor without a foundation. The frame is lightweight and easy to assemble and disassemble. When the conveying capacity and transport distance are large, it can be equipped with an intermediate drive device to meet the requirements. According to the requirements of the conveying process, it can be transported by a single machine, or multiple machines can be combined into a horizontal or inclined transport system to transport materials.

Belt conveyor is widely used in metallurgy, coal, transportation, hydropower, chemical industry and other departments because it has the advantages of large conveying capacity, simple structure, convenient maintenance, low cost and strong versatility. Belt conveyors are also used in building materials, electric power, light industry, grain, ports, ships and other departments.

Main technical parameters

Belt Width	Belt Length(m)	Power(kw)	Conveying Speed(m/s)	Conveying Capacity(t/h)
500	5-30	2.2-7.5	0.6-1.2	6-18
650	5-30	3—11	0.6-1.2	10-20
800	5-30	4-15	0.6-1.2	15-35
1000	110	5.5-22	0.6-1.0	20-40
1200	10—40	7.5-30	0.6-1.0	30-60

Belt conveyors Main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

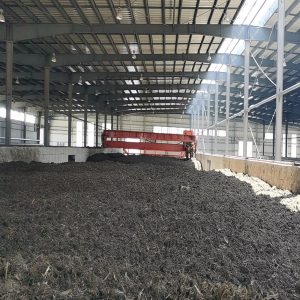

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
