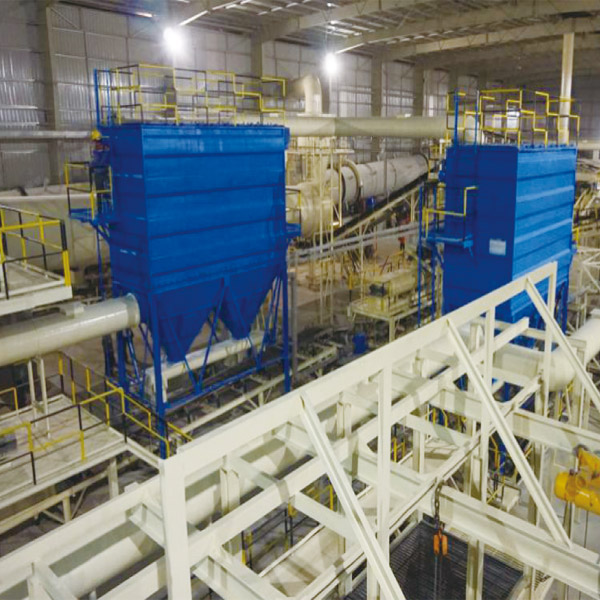

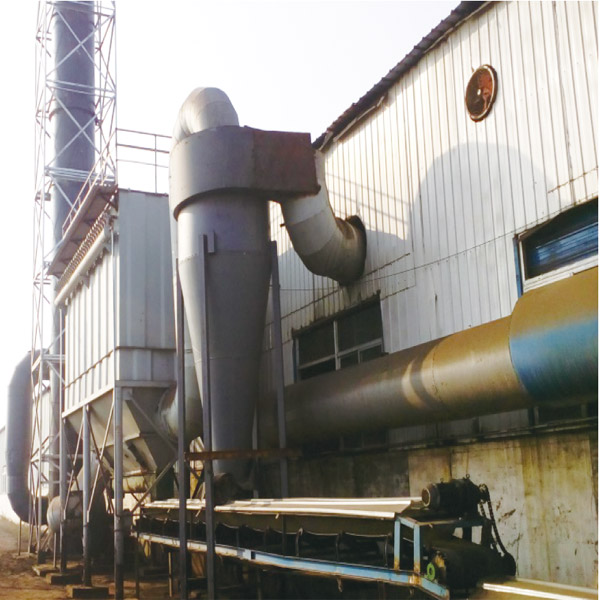

Bag-type Dust Removal

2022/12/19Compound fertilizer equipment Product 448

ColorBlue
apply toFine, dry, non-fibrous dust
materialWoven filter cloth or non-woven felt
Place of OriginChina

Inquiry By Whatsapp

Go To Amazon

Product parameters

FAQ

Product introduction

The bag filter is a dry dust filter device. It is suitable for capturing fine, dry, non-fibrous dust. The filter bag is made of textile filter cloth or non-woven felt, and uses the filter function of the fiber fabric to filter the dusty gas. When the dusty gas enters the bag filter, the dust with large particles and large specific gravity is When the air containing fine dust passes through the filter material, the dust will be blocked and the air will be purified. After the filter material is used for a period of time, a layer of dust accumulates on the surface of the filter bag due to effects such as screening, collision, retention, diffusion, and static electricity. This layer of dust is called the first layer. During the subsequent movement, the first layer becomes The main filter layer of the filter material depends on the effect of the first layer, and the filter material with a larger mesh can also obtain higher filtration efficiency. With the accumulation of dust on the surface of the filter material, the efficiency and resistance of the dust collector will increase accordingly. When the pressure difference on both sides of the filter material is very large, some fine dust particles that have attached to the filter material will be squeezed away. Decrease the efficiency of the dust collector. Besides, the high resistance power will dramatically lower air volume of the dust collecting system.

working principle

The high dust removal efficiency of the bag filter is inseparable from its dust removal mechanism. When the dust-laden gas enters the ash hopper from the air inlet pipe at the lower part of the dust collector through the deflector, the coarse dust will fall into the ash hopper due to the collision of the deflector and the reduction of the gas velocity, and the rest of the fine dust will fall into the ash hopper with the gas. Entering the filter bag room, due to the inertia, diffusion, barrier, hooking, static electricity and other effects of the filter fiber and fabric, the dust is blocked in the filter bag, and the purified gas escapes out of the bag and is discharged through the exhaust pipe. The dust accumulated on the filter bag is removed by gas backwashing, and the removed dust goes down to the ash hopper, and is discharged to the ash conveying device through the double-layer ash discharge valve. The dust accumulated on the filter bag can also be removed by blowing pulsed airflow, so as to achieve the purpose of dust removal, and the removed dust is discharged by the dust discharge device. The high dust removal efficiency of the bag filter is also inseparable from the filter material. The performance and quality of the filter material are directly related to the performance and service life of the bag filter. The filter material is the main material for making filter bags. Its performance and quality promote the progress of bag dust removal technology and affect its application range and service life.

Main technical parameters

Model	HXGM-120	HXGM-260	HXGM-380	HXGM-96-6	HXGM-96-2×9
Capacity(m3/h)	< 10800	< 18400	< 27600	< 41400	<126600
Filter area(m3)	120	260	380	576	1728
Number of filter bags	120	260	380	576	1728
Resistance(pa)	< 1500	< 1500	V 1500	V 1500	V 1500
Gas pressure(MPa)	0.5 〜0.7	0.5 〜0.7	0.5 〜0.7	0.5 〜0.7	0.5 〜0.7

Bag dust removal Main technical parameters

What fertilizer equipment does Hongxin Environmental Protection Company produce?

Tai’an Hongxin Environmental Protection Technology Co., Ltd. is located at the foot of Mount Tai, Tai’an High-tech Development Zone (East Zone), covering an area of 40000 ㎡, a building area of 16000 ㎡, and a total asset of 68 million yuan. It is currently an enterprise with A2 (Class I, II, III) pressure vessel design and manufacturing licenses, and is also a professional manufacturer of chemical equipment in Shandong Province, At the same time, it is a well-known professional manufacturer in the country (compound fertilizer equipment, organic fertilizer equipment, complete set of synthetic ammonia equipment, slow and controlled release fertilizer equipment, coal slurry dryer, BB fertilizer equipment, ammonia granulation, liquid ammonia storage tank, compound fertilizer ammonia station, dryer, pressure vessel, organic fertilizer production line, compound fertilizer production line, BB fertilizer production line)

What are the company’s main production line equipment and products?

The company has more than 100 sets of professional processing equipment such as CAD design center, steel casting branch, large gear processing equipment, large lathe, etc. It has a team of high-quality process engineers and professional equipment installation technicians. The company provides users with technical consultation, process design, installation, commissioning, personnel training, turnkey project and other one-stop services, and guarantees perfect after-sales service in the later stage.

Compound fertilizer equipment production lineCompound fertilizer equipment is a kind of equipment for making fertilizer by ammonia acid and ammonia spray granulation.

Organic fertilizer equipment production lineOrganic fertilizer production must go through fermentation Crush Mixing Granulation dry. Cooling The process of screening

Controlled release fertilizer equipmentControlled release fertilizer is an advanced form of slow-release fertilizer.

Flushing and fertilizing equipmentAs a kind of quick-acting fertilizer, washing fertilizer has comprehensive nutrient elements

Comprehensive strength of the company’s production?

Design and manufacture of Class I, II and III pressure vessels.
Design, manufacture and installation of complete set of synthetic ammonia equipment.
200000-300000 tons automatic batching BB fertilizer production line
200000-300000 t/a urea base, ammonia acid granulation and compound fertilizer production line
1-20 million tons/year organic and inorganic fertilizers, garbage, sludge and other organic waste harmless treatment fertilizer equipment
National patent 1-20 million tons/year controlled-release coated fertilizer process and equipment (patent No. 20072021844. X)
National patent: 200000t/a domestic and paper sludge; Monosodium glutamate black liquor spray drying fertilizer equipment (patent No. ZL20072021843.5)

Business scope of the company?

Our products are sold all over the country and exported to more than 20 countries and regions such as the United Arab Emirates, Indonesia, Vietnam, Bangladesh, South Korea, Japan, Myanmar, South Korea, Nigeria and Australia.
